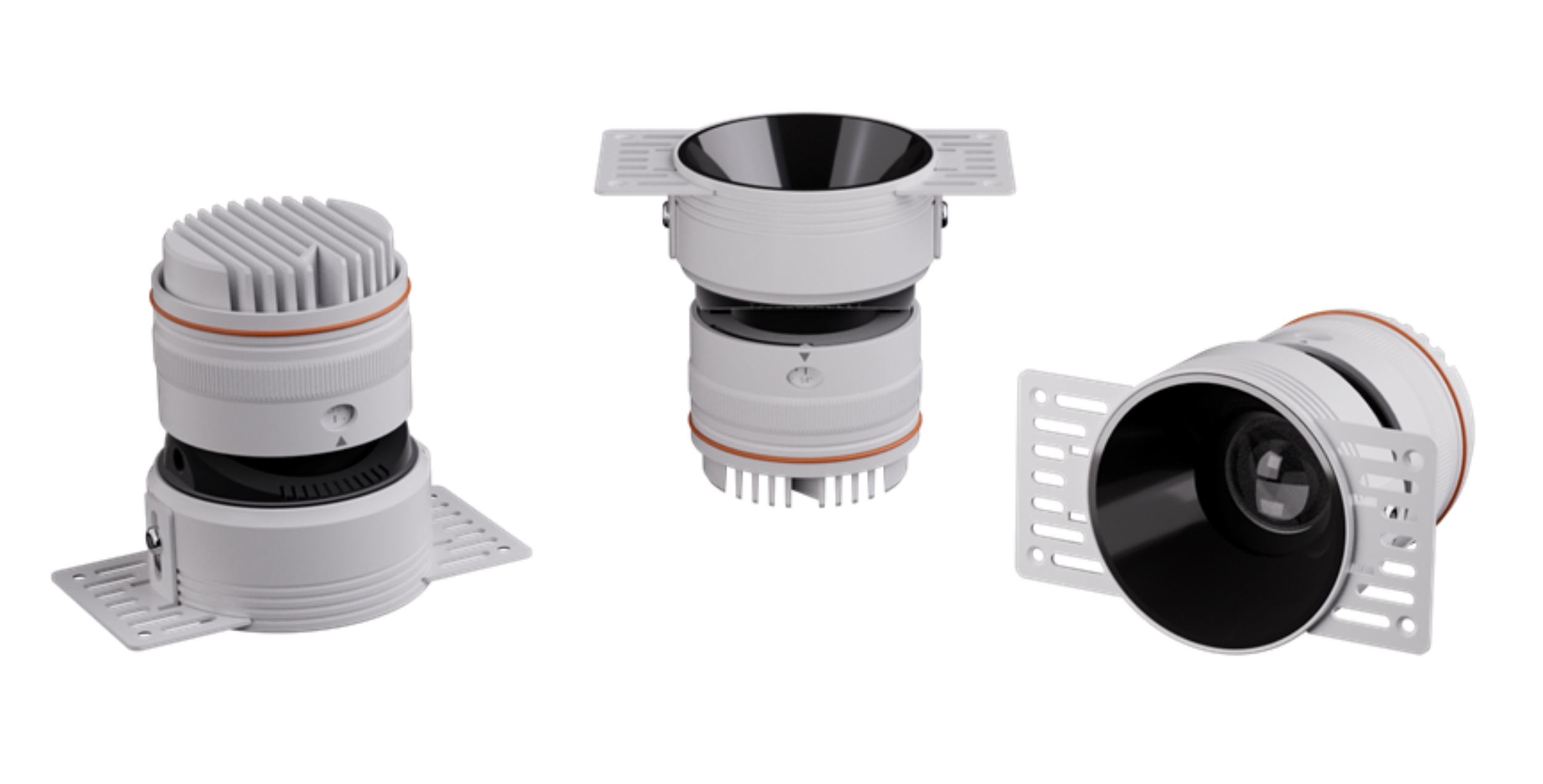

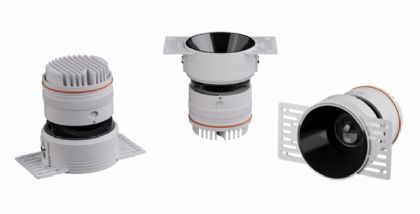

INNOVATIVE GIMBAL LED DOWN LIGHT
1. CCT Adjustable: 2700K-3000K-3500K-4000K-5000K
2. Wattage Adjustable: 5W-7W-9W-12W
3. Beam Angle Adjustable
4. Dimming
a) TRIAC Dimming: 100-277V
b) 0-10V
5. Modular Design
a) Reduce the SKUs
b) Parts are effortlessly to assemble into a final product
c) Major parts: Heatsink with LED board pre-assembled, Lens, Trims
d) Screw-in & Buckle-in to assemble a final product
|
2’’ |
2.5’’ |
3’’ |
4’’ |
6’’ |
CUTTING |
60MM |
75MM |
92MM |
116MM |
|
DIMMING CAPABILITIES |
TRIAC DIMMING 100-277V |
TRIAC DIMMING 100-277V |
TRIAC DIMMING 100-277V |
TRIAC DIMMING 100-277V |
TRIAC DIMMING 100-277V |
0-10V |
0-10V |
0-10V |
0-10V |
0-10V |
|
WATT ADJUSTABLE |
5W-7W-9W-12W |
5W-7W-9W-12W |
5W-7W-9W-12W |
12W-15W-18W-20W |
12W-15W-18W-20W |
CCT ADJUSTABLE |
2700K-3000K-3500K-4000K-5000K |
2700K-3000K-3500K-4000K-5000K
|
2700K-3000K-3500K-4000K-5000K
|
2700K-3000K-3500K-4000K-5000K
|
2700K-3000K-3500K-4000K-5000K
|
BEAM ANGLE ADJUSTABLE |
20°~50° Fixed Beam Angle: 20°/36°/50° |
20°~50° Fixed Beam Angle: 20°/36°/50°
|
20°~50° Fixed Beam Angle: 20°/36°/50°
|
20°~50° Fixed Beam Angle: 20°/36°/50°
|
20°~50° Fixed Beam Angle: 20°/36°/50°
|
LIGHT SOURCE |
BRIDGELUX >90Ra 3 Steps |
BRIDGELUX >90Ra 3 Steps |
BRIDGELUX >90Ra 3 Steps |
BRIDGELUX >90Ra 3 Steps |
BRIDGELUX >90Ra 3 Steps |
LENS |
LEDiL |
LEDiL |
LEDiL |
LEDiL |
LEDiL |
CERTIFICATION |
ETL |
ETL |
ETL |
ETL |
ETL |
OPTIONAL |
TITLE 20 |
TITLE 20 |
TITLE 20 |
TITLE 20 |
TITLE 20 |
